True Ultraviolet and Near IR Imaging with an Optical Microscope

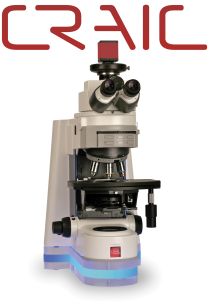

The UVM-1™ is a UV microscope that also can image in the visible and NIR. This UV-visible-NIR microscope embodies both advanced optics for cutting edge UV, color and NIR imaging and visualization. The system is a flexible design, very easy to use and very durable. It is designed with cutting edge CRAIC optics for the highest image quality and to give years of service.
The UVM-1™ UV microscope can image in transmission, reflectance, polarization and even in fluorescence from the UV, visible, and NIR regions with high spatial resolution…all with the same microscope and without swapping components.
From the deep ultraviolet through the visible and into the near infrared, the UVM-1™ captures absorbance, reflectance and fluorescence images in a single, seamless operation — with no filters to change and no optics to swap. Samples can be viewed directly through the DirecVu™ eyepieces or recorded with a high-resolution digital camera, so what the operator sees and what the instrument captures are always the same.
Built on CRAIC’s own UV-corrected optics, the UVM-1™ resolves detail a conventional visible-light microscope cannot reach — subsurface structure in bonded silicon, contamination on MEMS and disk-drive components, and the ultraviolet signatures of biological and forensic samples. Rugged, straightforward to operate and equally suited to research, quality control and failure analysis, it is engineered to give years of dependable service.
Microscope for imaging deep ultraviolet, visible and near infrared.
Key Features*
- Deep UV microscopy to 250 nm
- Color microscopy from 400-700 nm
- NIR microscopy from 700-1700 nm
- Transmission, reflectance, fluorescence, and polarization imaging of microscopic samples...all with the same instrument
- True high resolution digital imaging and direct visualization through eyepieces
- Can even add Raman spectroscopy of microscopic samples.
- Easy to use and maintain
Applications
- Cellular structure analysis

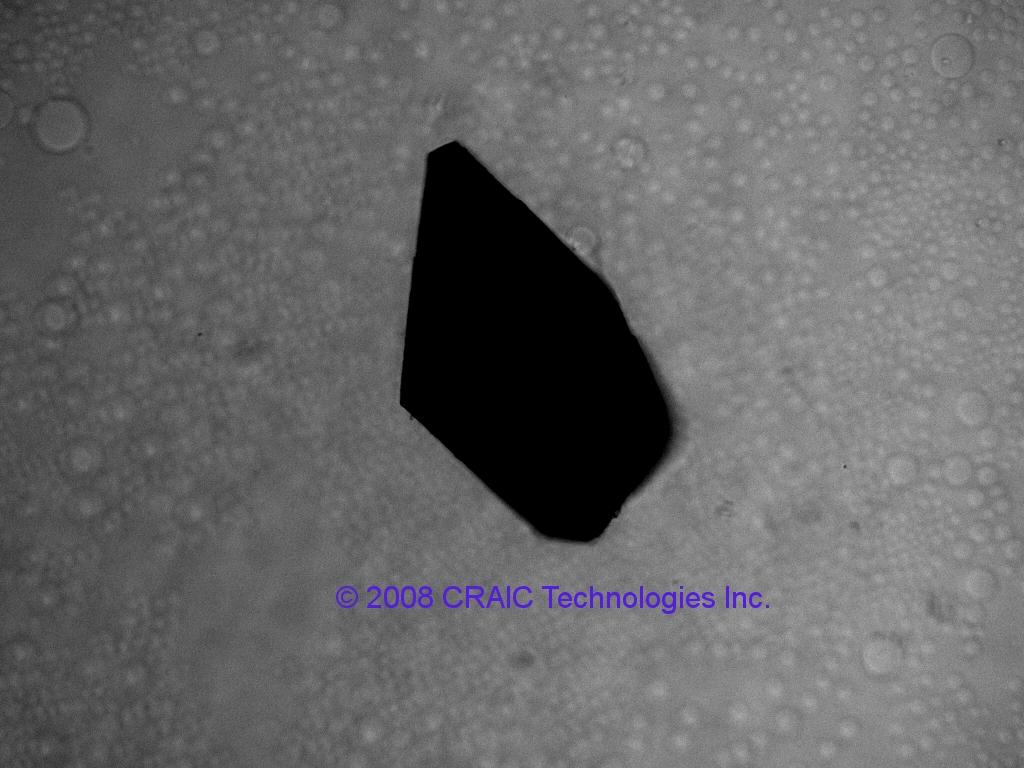

- Protein crystals
- Plankton microspectroscopy
- Tissue analysis
- In vivo microspectroscopy
- In vitro microspectroscopy
- Kinetics spectroscopy
- Combinatorial chemistry
- Drug development
CRAIC Technologies provides service and support for it's instruments worldwide. CRAIC Technologies service engineers offer instrument repair, maintenance, training and technical support for all aspects of CRAIC Technologies products.

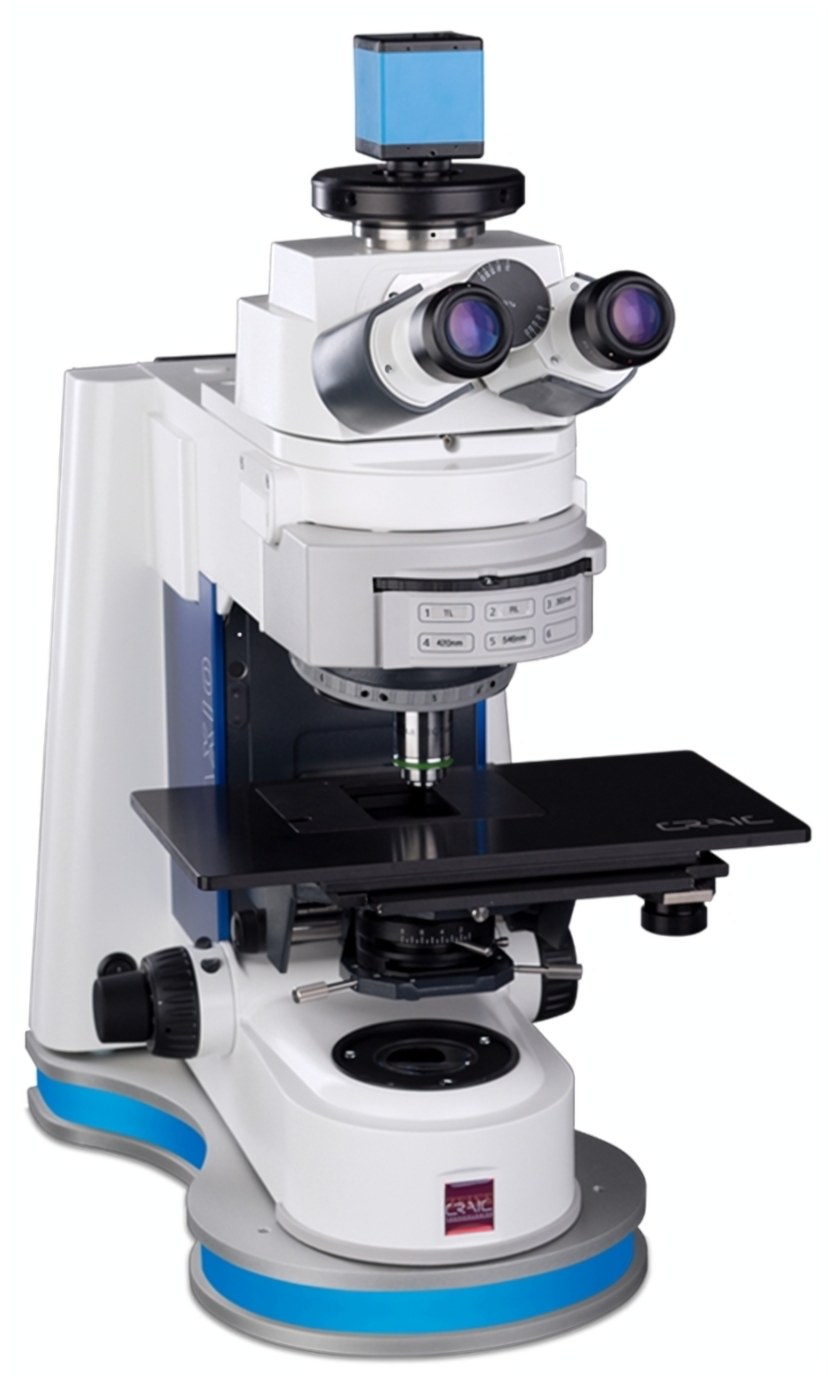

The UVM-1™ UV Microscope can image from the deep ultraviolet to near infrared with one seamless operation. It can acquire images in absorbance, reflectance, and fluorescence. It can be fitted with both the DirecVu™ to view samples by eye as well as with the high resolution digital imaging system.
Perfect Vision for Science™
The lit microscope base and the lit octagonal optical head are trademarks of CRAIC Technologies, Inc. CRAIC Technologies, 2030PV™, FLEX™, 508PV™, Apollo™, GeoImage™, rIQ™, Lambdafire™, Lightblades™ and “Perfect Vision for Science” are all trademarks of CRAIC Technologies, Inc. Instrument features offered depend upon instrument configuration. Features listed here may not be present in some configurations.
*Features and specifications depend upon instrument configuration. Specifications subject to change without notice.
